Commercial Retaining Walls in San Antonio, TX

We construct commercial retaining walls in San Antonio, TX to stabilize slopes, support parking lots, and control grade changes. Our team works with engineers to build masonry and block retaining walls sized to your loads and site conditions. Proper drainage and reinforcement are built in from the start. Schedule a commercial retaining wall assessment and estimate.

Vanguard Masonry San Antonio provides professional commercial retaining walls throughout San Antonio, TX and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call (210) 941-2631 or request your free quote.

Commercial Retaining Walls for San Antonio Properties

Vanguard Masonry San Antonio designs and builds commercial retaining walls that solve real site challenges on retail centers, office parks, multifamily communities, schools, industrial sites, and medical campuses across the San Antonio area. Our focus is not just to hold back soil, but to protect your structures, pavements, and landscaping from long term movement and water damage.

Every commercial property has different pressures on its retaining walls. Parking lots need walls that can handle traffic and heavy delivery trucks at the edge. Multifamily complexes need visually appealing tiered walls that blend with landscaping. Industrial clients often need taller, more robust walls that integrate loading docks or secure access points. We begin by understanding how your site is used day to day, then design a retaining wall solution around those real conditions.

Here in San Antonio, expansive clay soils and intense storm bursts are the two biggest threats to poorly built walls. Our crews see the same pattern over and over: undersized drainage, shallow footings, and no allowance for soil movement. Vanguard Masonry San Antonio addresses those issues up front with deeper embedment, engineered backfill, and drainage systems built to handle sudden Texas downpours so your investment holds up over decades, not just a few years.

How We Design a Commercial Retaining Wall That Works

A commercial retaining wall project always starts with information, not concrete. We walk the site, review your grading or civil plans, and document existing slopes, nearby structures, and utilities. For walls above certain heights or with special loading, we coordinate with a licensed engineer to confirm soil parameters, surcharge loads, and safety factors required by code and by your insurer.

We then determine the wall type that best fits the site. For example, a retail center with limited setback behind the wall might require a cast in place concrete stem wall or a modular block wall with soil reinforcement. A sloped multifamily site with room for terracing might benefit from multiple shorter segmental block walls with landscaped tiers to reduce visible height and perceived mass.

Drainage design is central in San Antonio because our storms tend to be short and heavy. We plan for a gravel drainage zone behind the wall, perforated drain pipe at the base, filter fabric to prevent soil migration, and outlets that tie into your on site drainage plan. Where we know water will concentrate, such as behind loading dock walls or at the base of long slopes, we add weep holes or additional drain lines so hydrostatic pressure does not build up.

Before construction begins, Vanguard Masonry San Antonio provides a clear scope and layout that coordinates with your civil engineer and any other trades on site so the wall does not conflict with utilities, fencing, lighting, or landscaping.

Material Options for Commercial Retaining Walls in San Antonio

Choosing the right material affects cost, appearance, speed of construction, and long term performance. We help property owners and general contractors weigh each option based on real site conditions in and around San Antonio.

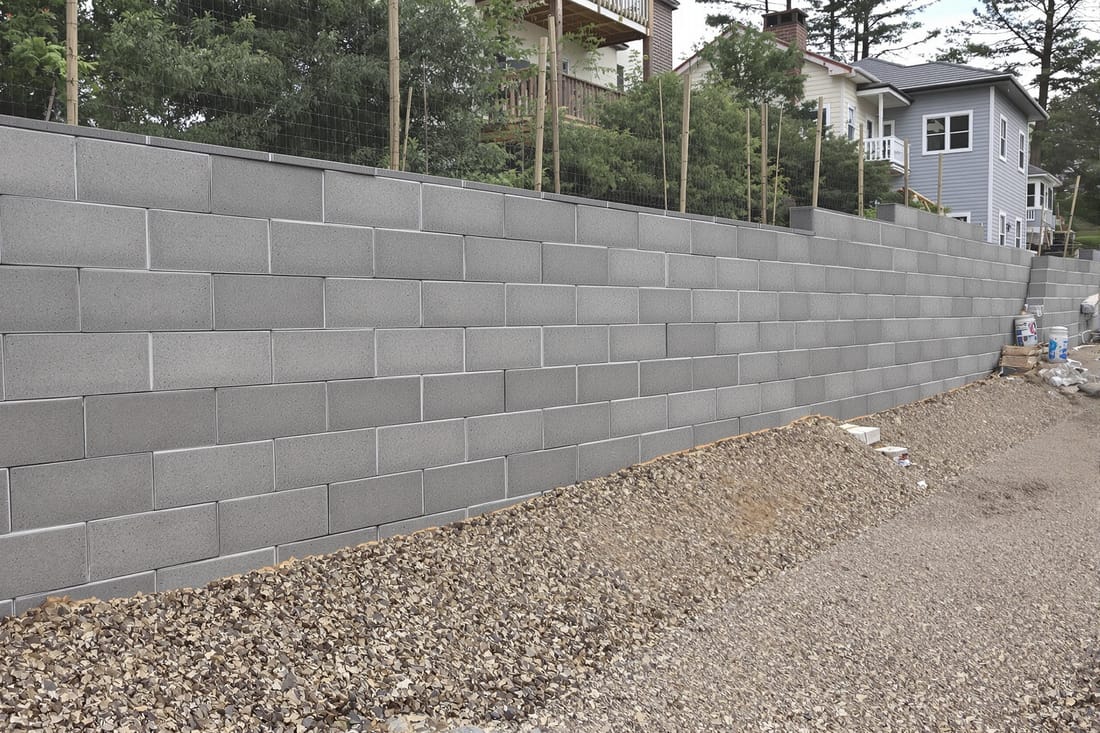

Segmental concrete block walls are common for commercial projects because they are engineered, modular, and visually appealing. These walls use interlocking concrete units with geogrid soil reinforcement extended behind the wall. They work very well in our local clays if the backfill is properly compacted with crushed stone and engineered fill. Block systems come in multiple face textures and colors that can coordinate with your building facade, so shopping centers and medical offices often prefer this route.

Cast in place concrete retaining walls are ideal where space behind the wall is tight or where the wall must support additional structural elements, such as guardrails, columns, or overhanging slabs. In downtown or infill San Antonio projects, we often use these walls because property lines and easements limit how far we can extend reinforcement into the slope. These walls require formwork, reinforcing bar, and careful concrete placement and curing.

Natural stone or stone veneer on a structural wall can be a good fit for hospitality and higher end office or multifamily projects that want a Hill Country inspired look. In these cases, the structural portion might still be concrete block or cast in place concrete, and the stone provides a durable, attractive face that ties into the overall site design.

For industrial sites and utility facilities, we sometimes recommend poured concrete or large precast elements that can handle equipment loads and provide simple, low maintenance surfaces that stand up to forklifts and trucks.

Step by Step: Our Commercial Retaining Wall Construction Process

Vanguard Masonry San Antonio follows a consistent process so your project runs smoothly and meets specifications.

1. Layout and excavation. After confirming property lines, offsets, and finished grades, we mark the wall alignment on site. Our crew excavates to the required depth for the wall footing or base course, which is typically below frost depth and adjusted for the type of soil we encounter. In many San Antonio areas we transition from clay to limestone within a few feet, so we are prepared for both soft dig and rock hammering when necessary.

2. Base preparation. We install a compacted layer of crushed stone as the leveling base to create a stable, free draining foundation for the wall. For tall or heavily loaded walls, this base may be thicker and wider than what you might see in a residential application.

3. Structural wall construction. For block walls, we install the first course perfectly level, then stack subsequent courses, adding geogrid reinforcement layers at engineered intervals, and backfilling and compacting behind each lift. For cast in place walls, we set forms, install reinforcing steel, and pour concrete in controlled lifts, then strip forms after the concrete gains strength.

4. Drainage installation. We place perforated drain pipe, washed stone, and filter fabric behind the wall as we build. Particular attention is given to tying drain outlets into your existing storm system so water does not discharge in unwanted areas.

5. Backfill and compaction. We use appropriate fill, often a mix of crushed stone and engineered fill, compacted in thin lifts with plate compactors or rollers. This step is critical in San Antonio’s expansive clays, which can swell and shrink if not managed correctly.

6. Finish work and cleanup. We complete caps, guardrail embeds if required, fencing sleeves, and transitions to adjacent pavements or sidewalks. The job site is cleaned so the surrounding trades, such as paving or landscaping, can proceed without delays.

Cost, Timelines, and Common Issues on San Antonio Commercial Sites

On commercial retaining walls, cost is driven primarily by wall height, total length, wall type, required engineering, and site access. Taller walls need more reinforcement, deeper excavation, and often more complex drainage. Difficult access, such as behind existing buildings or along narrow easements, can require smaller equipment and more labor hours.

Local soil conditions have a real effect on price. If your site sits on shallow limestone, excavation may need rock breaking, which increases time and equipment costs but results in a very solid foundation. If the site is mostly deep clay, we may specify additional drainage and select backfill materials to reduce long term movement.

Weather and scheduling also matter. In San Antonio, late spring and early fall often bring intense thunderstorms. We plan excavation and open cuts so they are not left exposed just before a forecasted storm, and we build temporary drainage measures if rain is expected. In mid summer, concrete placement is scheduled to avoid temperature extremes where possible and we follow hot weather concrete practices.

Common issues we are asked to correct on commercial properties include leaning walls from poor drainage, cracked or bulging walls from inadequate reinforcement, and walls that conflict with later additions like pavement expansions or utilities. Vanguard Masonry San Antonio looks for these risks in the design phase and coordinates with your engineer or facility manager so the wall can be integrated with both current and planned site improvements.

By addressing cost drivers and potential problems up front, we help owners and contractors keep change orders to a minimum and avoid surprises once construction is underway.

Why San Antonio Businesses Trust Vanguard Masonry for Retaining Walls

Commercial retaining walls are not a place to experiment with generic details pulled from another region. San Antonio’s mix of expansive clay, limestone, steep sections of terrain, and intense storm events requires local experience. Vanguard Masonry San Antonio brings that experience along with a focus on clear communication so owners, GCs, and property managers know what to expect at each phase.

We are comfortable working within active properties, from shopping centers that must remain open, to schools that require strict safety protocols, to multifamily communities that need noise and disruption minimized. Our crews understand staging, phasing, and safety around the public, which is often as important as the engineering details.

From initial concept and budgeting help, through stamped engineering and permitting support, to final construction and punch list, our goal is always the same: a commercial retaining wall that protects your property, drains correctly, looks appropriate for the site, and holds up under real world conditions in San Antonio. If you are planning new development, an expansion, or a wall replacement, Vanguard Masonry San Antonio can walk the site with you and outline practical options that fit your budget and schedule.
